ScriptOs¶
This section documents the built-in ScriptOs available in ScriptoHub.
ScriptOs vs Extensions¶
Both ScriptOs and Extensions expand ScriptO Studio functionality:
| Aspect | ScriptOs | Extensions |
|---|---|---|
| Language | Python only | JavaScript (+ Python libs) |
| UI Location | Run from ScriptOs panel | Sidebar tabs |
| Persistence | Run on-demand | Always loaded |
| Use Case | Quick utilities, demos, automation | Complex tools with dedicated UI |
Choose ScriptOs for quick scripts, hardware testing, and simple UI plugins.
Choose Extensions for persistent sidebar tools with complex UI.
Categories¶
UI Plugins¶
ScriptOs that provide their own web-based user interfaces, displayed in modal windows within ScriptO Studio.
- UI Plugin - Hello World - Minimal UI plugin demonstration
Diagnostics & Testing¶
- Memory Check - Monitor device memory usage

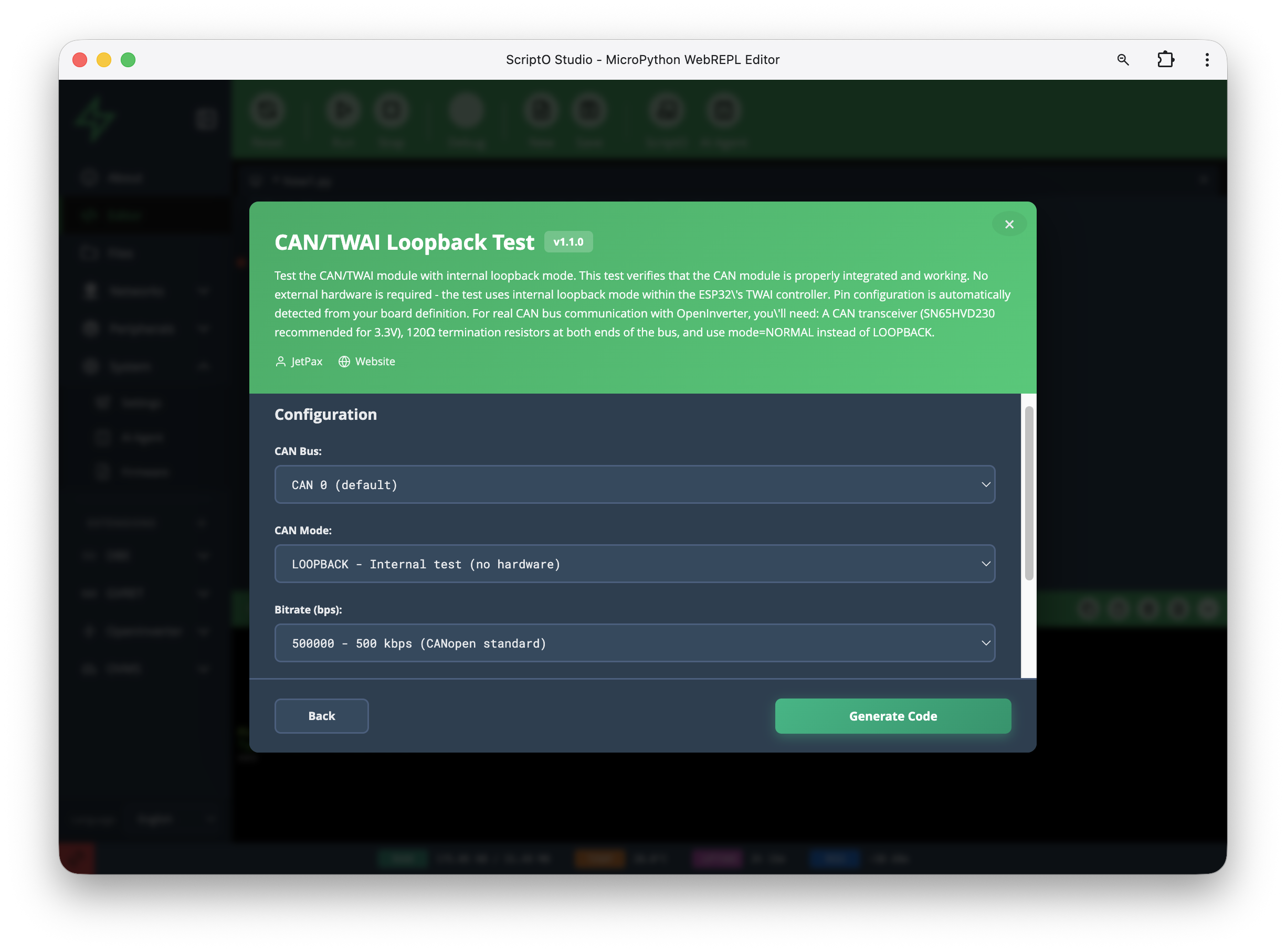

- CAN Loopback Test - Test CAN bus hardware
- Wi-Fi Scan - Scan for available networks
- I2C Slaves Scan - Discover I2C devices
- 1-Wire Slaves Scan - Discover 1-Wire devices
Hardware Interfaces¶
- GPIO Input / GPIO Output - Digital I/O control
- ADC Reader - Analog input reading
- DAC Output - Analog output control
- PWM & Lighting / PWM & Servo Motor - PWM control
Communication¶
- UART Test - Serial communication testing
- BLE Scan / BLE iBeacon - Bluetooth operations
- USB Modem Status - Cellular modem monitoring
Automotive (UDS/CAN)¶
- UDS Client Demo - Unified Diagnostic Services client
- UDS Server Demo - Implement a UDS server
- CANopen Bus Scanner - Discover CANopen nodes
LED Control¶
- LEDs - NeoPixel Strip - WS2812/SK6812 control
- LEDs - DotStar Strip - APA102 control
- Status LED Color Control - Device status LED
Storage¶
- SD Card Mount Test - SD card operations
- SD Card Complete - Full SD card example
Network¶
- NTP Time Sync - Synchronize device time
- iperf3 Server - Network speed testing
Running ScriptOs¶
- Open ScriptO Studio and connect to your device
- Click the ScriptOs button in the sidebar
- Select a category and choose a ScriptO
- Configure any parameters (if available)
- Click Run to execute on the device
[!TIP] Most ScriptOs have configurable parameters. Check the configuration panel before running.
Getting Started¶
- Writing ScriptOs - Create your own ScriptOs
- VM Sharing & Async - How scripts share the MicroPython VM
- UI Plugin - Hello World - Example with custom UI
