UI Plugin - Hello World

A minimal demonstration of the ScriptO UI Plugin Architecture. This ScriptO registers an HTTP route on your device and displays a custom web interface in a modal window within ScriptO Studio.

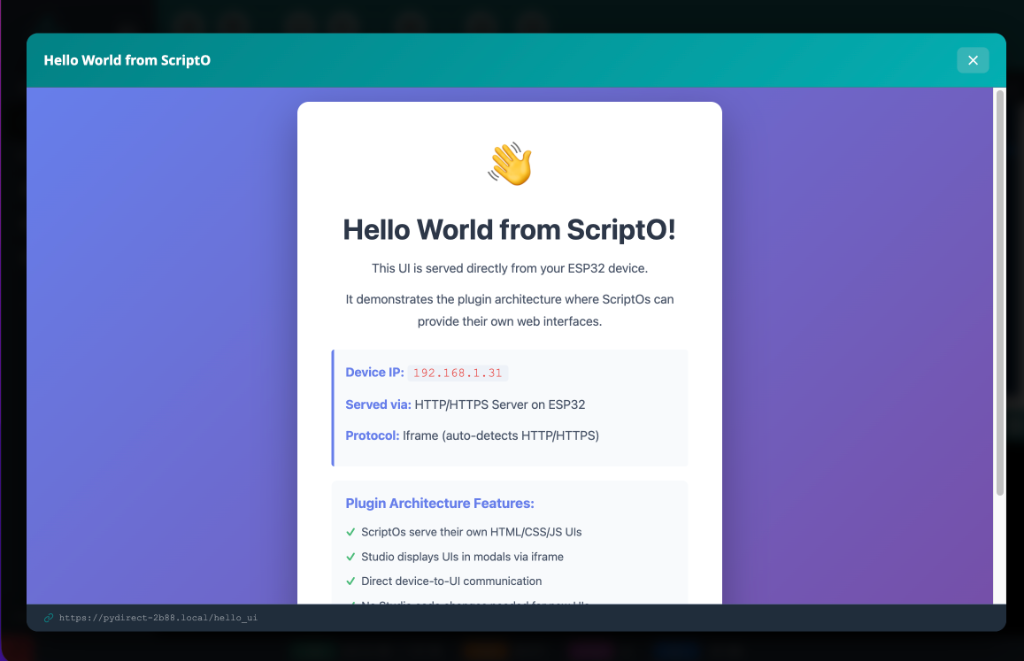

Hello World UI Plugin

Features

  • Device-served UI - HTML/CSS/JS served directly from your ESP32
  • Iframe integration - Studio displays the UI in a modal
  • Zero Studio changes - No code changes needed in ScriptO Studio
  • Full web capabilities - Use any web technologies in your plugin UI

How It Works

  1. The ScriptO registers an HTTP route (/hello_ui) on the device
  2. A display_ui command is sent to Studio via WebREPL
  3. Studio opens an iframe modal pointing to the device's HTTP server
  4. The UI is served directly from the ESP32

Running the ScriptO

  1. Connect to your device in ScriptO Studio
  2. Open ScriptOs → UI Plugins → UI Plugin - Hello World
  3. (Optional) Customize the window title in the configuration
  4. Click Run
  5. The Hello World UI appears in a modal window

Configuration Parameters

Parameter Type Default Description
ui_title string "Hello World from ScriptO" Title shown in the modal window

Optional: Trust Device Certificate (macOS)

When running UI Plugins, Chrome may show a "Not Secure" warning in the URL bar because the device uses a self-signed HTTPS certificate. This is cosmetic and doesn't affect functionality, but you can eliminate it by trusting the device certificate:

  1. In ScriptO Studio, open Files and navigate to /certs/
  2. Download servercert.pem to your Mac
  3. Double-click the .pem file → Opens Keychain Access
  4. The certificate is added to your "login" keychain
  5. Find the cert in Keychain Access, double-click it
  6. Expand the Trust section
  7. Set "When using this certificate" to "Always Trust"
  8. Close the dialog (enter your password when prompted)
  9. Restart Chrome

[!NOTE] Each device has a unique self-signed certificate. You'll need to repeat this process for each device you want to permanently trust.

Creating Your Own UI Plugin

Use this ScriptO as a template for creating your own UI plugins:

import httpserver
import webrepl_binary as webrepl
import network
import json
from lib.sys.utils import getDeviceURL

def my_ui_handler(uri, post_data=None, remote_addr=None):
    """HTTP handler that returns your custom HTML."""
    html = """<!DOCTYPE html>
<html>
<head>
    <title>My Custom UI</title>
    <style>
        /* Your CSS here */
    </style>
</head>
<body>
    <h1>My Custom UI</h1>
    <!-- Your content here -->
    <script>
        // Your JavaScript here
    </script>
</body>
</html>"""
    httpserver.send(html)

# Register the HTTP route
httpserver.on('/my_ui', my_ui_handler, 'GET')

# Tell Studio to display the UI
url = getDeviceURL('/my_ui')
webrepl.notify(json.dumps({
    "display_ui": {
        "url": url,
        "title": "My Custom UI"
    }
}))

Key Functions

Function Module Purpose
httpserver.on(path, handler, method) httpserver Register HTTP route
httpserver.send(content) httpserver Send HTTP response
getDeviceURL(path) lib.sys.utils Get device URL with correct protocol and hostname
webrepl.notify(payload) webrepl_binary Send command to Studio
